Product Details:
|
| Production Name: | PPR Glassfiber PPR Pipe Production Machine | Pipe Size: | 20-110mm; 3 Layer |
|---|---|---|---|
| Extruder Capacity: | 350kgs/h For Inner &outer +180kgs/h Middle GF | Die Head: | 3 Layer Co-extrusion With Two Extruders |
| Production Speed: | 12m/min; 20m/min; 28m/min | Control System: | SIEMENS PLC With Remote Control System |
| Warranty: | 2 Years | Screw And Barrel: | Single Screw |
| Motor: | SIEMENS | Extruder Model: | 6533 |
| Packing Method: | Wooden And Film Packages | Electrical Components: | Siemens Or Schnider |
| Vacuum Tank: | 8 Meters Long | ||
| Highlight: | PPR Pipe Production Line,20mm-110mm PPR Pipe Making Machine,PPR Tube Machine |
||
For Example, in order to save the cost of raw material, we can use the recycled material which is to be the middle layer to produce the PE thick wall pipes. For hot water supply pipes, the production line could not only have the PP-R Layer but also increase some other structure Layer including glass fiber, which attach the pipe to some excellent application features.
Product details:

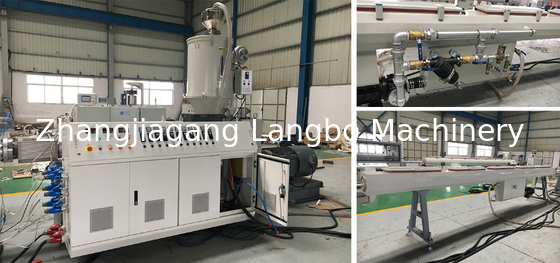

Single screw extruder machine
The extruder are crafted with top brand components to ensure production stability, efficiency and machine durability.

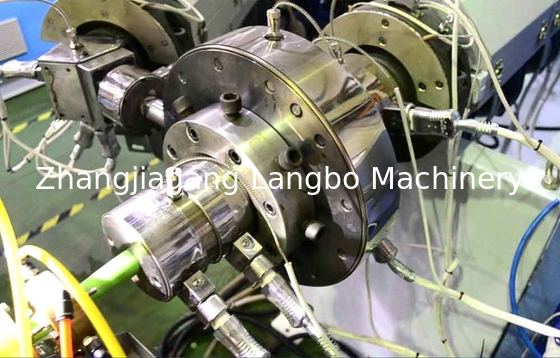

Mould
The mould design is different from the normal ppr pipe. It has adapter for the co-extrusion for the two single extruders. With long cooling calibrator, the produced product has much better performance.

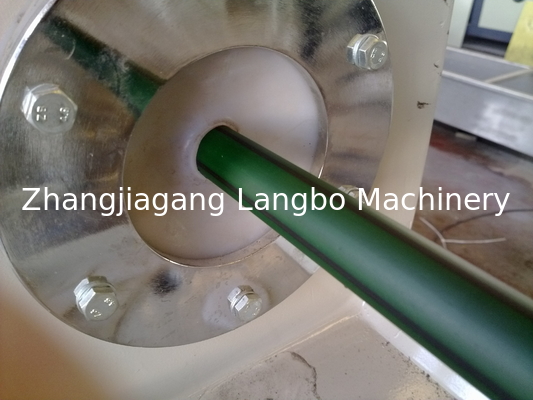

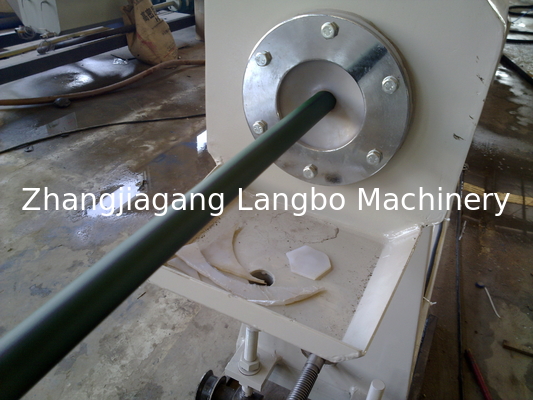

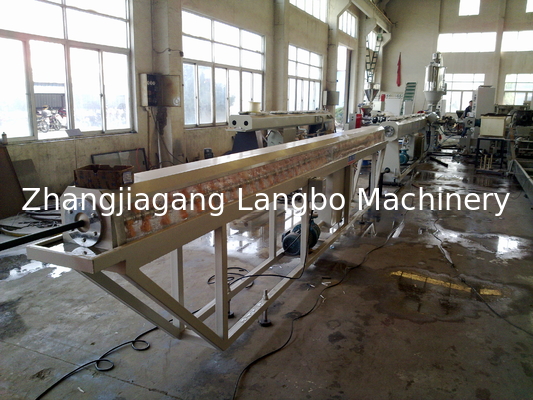

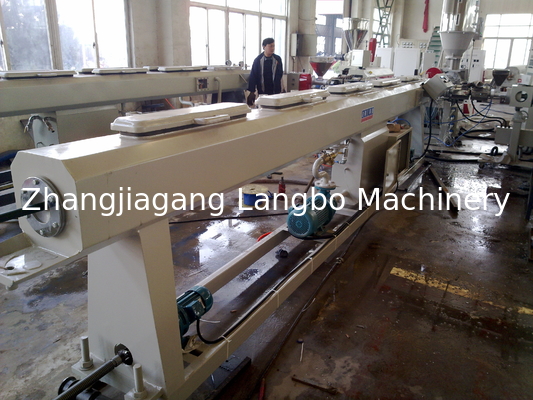

Vacuum calibration & cooling tank
The vacuum calibration tank adopt two chamber structure: the vacuum calibration and cooling parts. Both of vacuum tank and spraying cooling tank adopt stainless 304 steel. The excellent vacuum system ensures precise sizing for pipes. We lengthen the vacuum and cooling tank to 8m. With much longer cooling process, the CPVC pipe can be well cooled and have better surface.
Haul-off Unit
We adopt three caterpillar on the haul-off machine ensures produced pipe running stably and steady. The haul-off units can make tailored hauling model based on certain production requirement by adjusting the general control.
Cutting Unit
The high accuracy encoder ensures a precise and stable cutting length. With PLC control system, it can be cut by manual operation according to the specific application. Due to the high corrosive feature of the CPVC material, all the surfaces of the cutting unit adopts stainless steel 304. It ensures the working lifetime of the cutting machine.
Scope of application
1,Cold and hot drinking water pipe system
2,Industrial fluid transportation system
3,Feeding piping system in seaside facilities
4,Air-conditioning system
5,Agricultural irrigation system
6,Transportation internal piping system
