500/1000 Stainless Steel Plastic Mixer Combination For Mixing PVC Raw Material

500/1000 Stainless Steel Plastic Mixer Combination

For Mixing PVC Raw Material

Brief Introduction of the Mixer Combination:

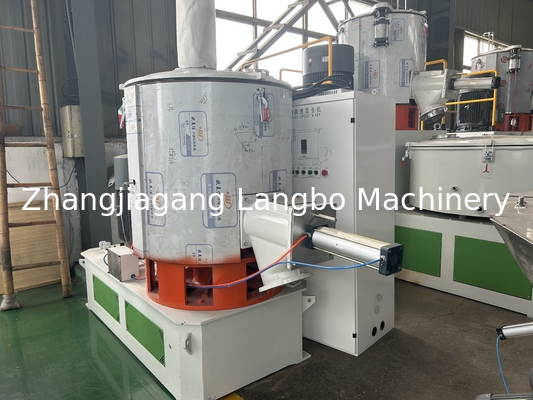

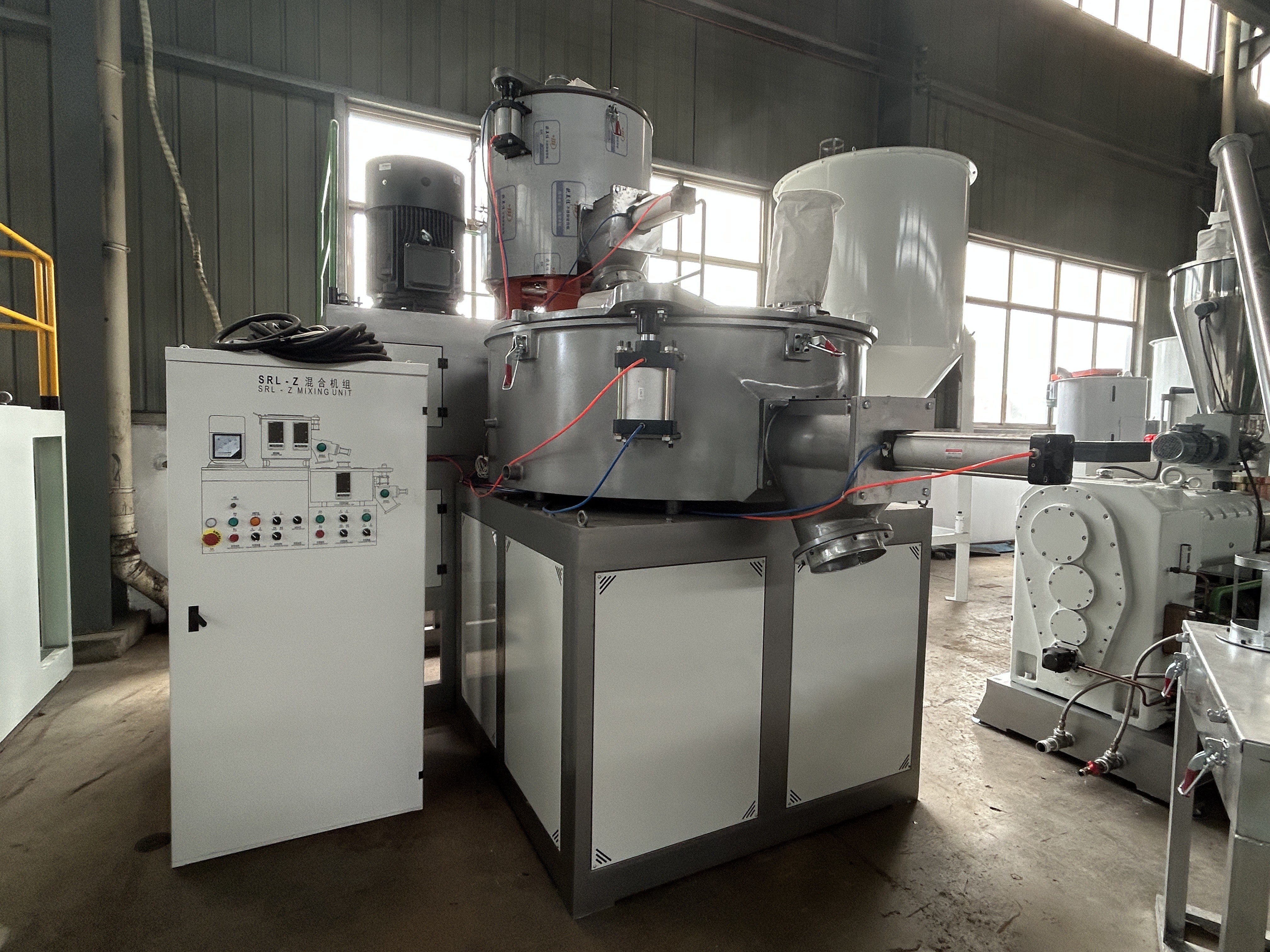

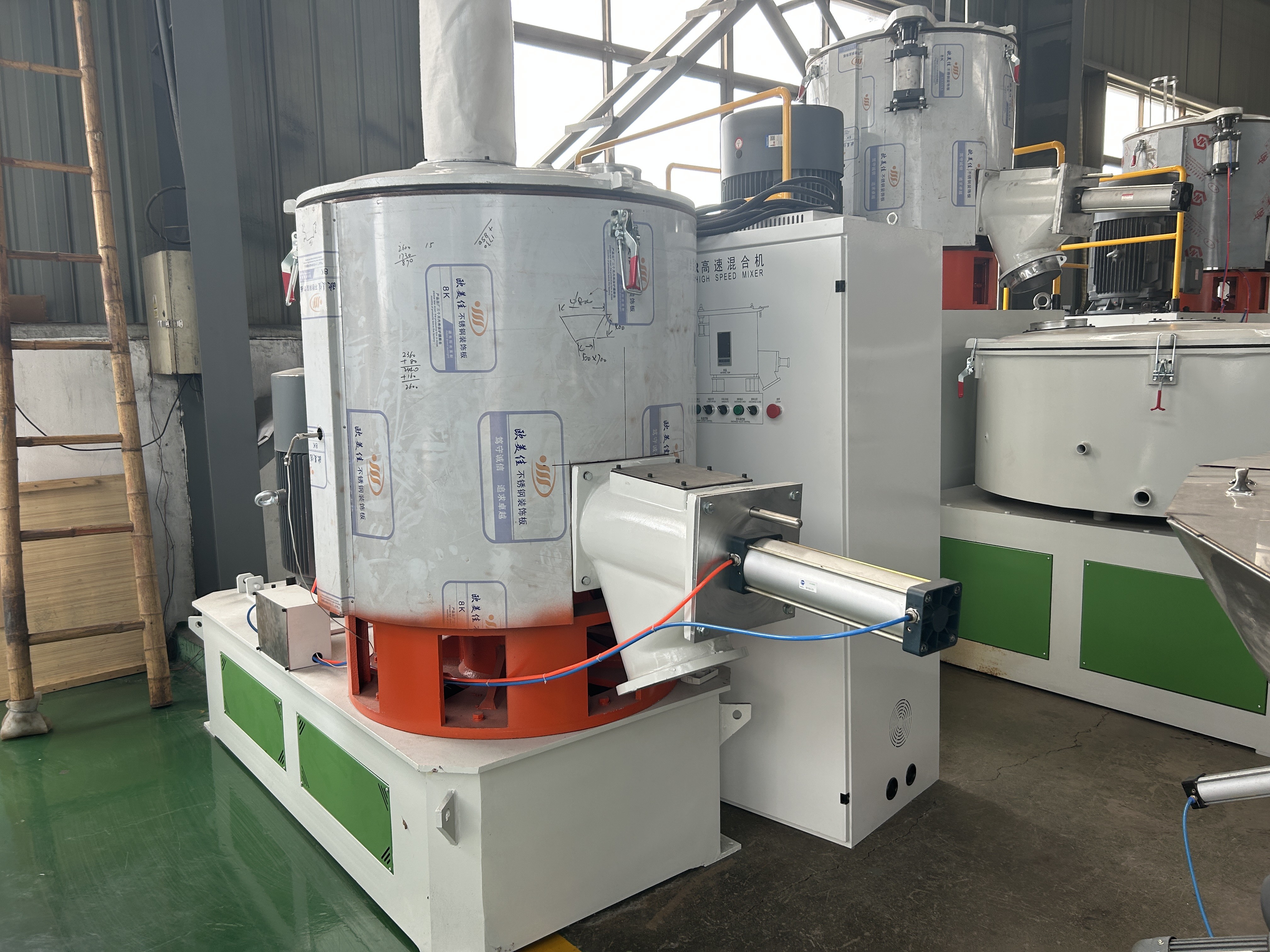

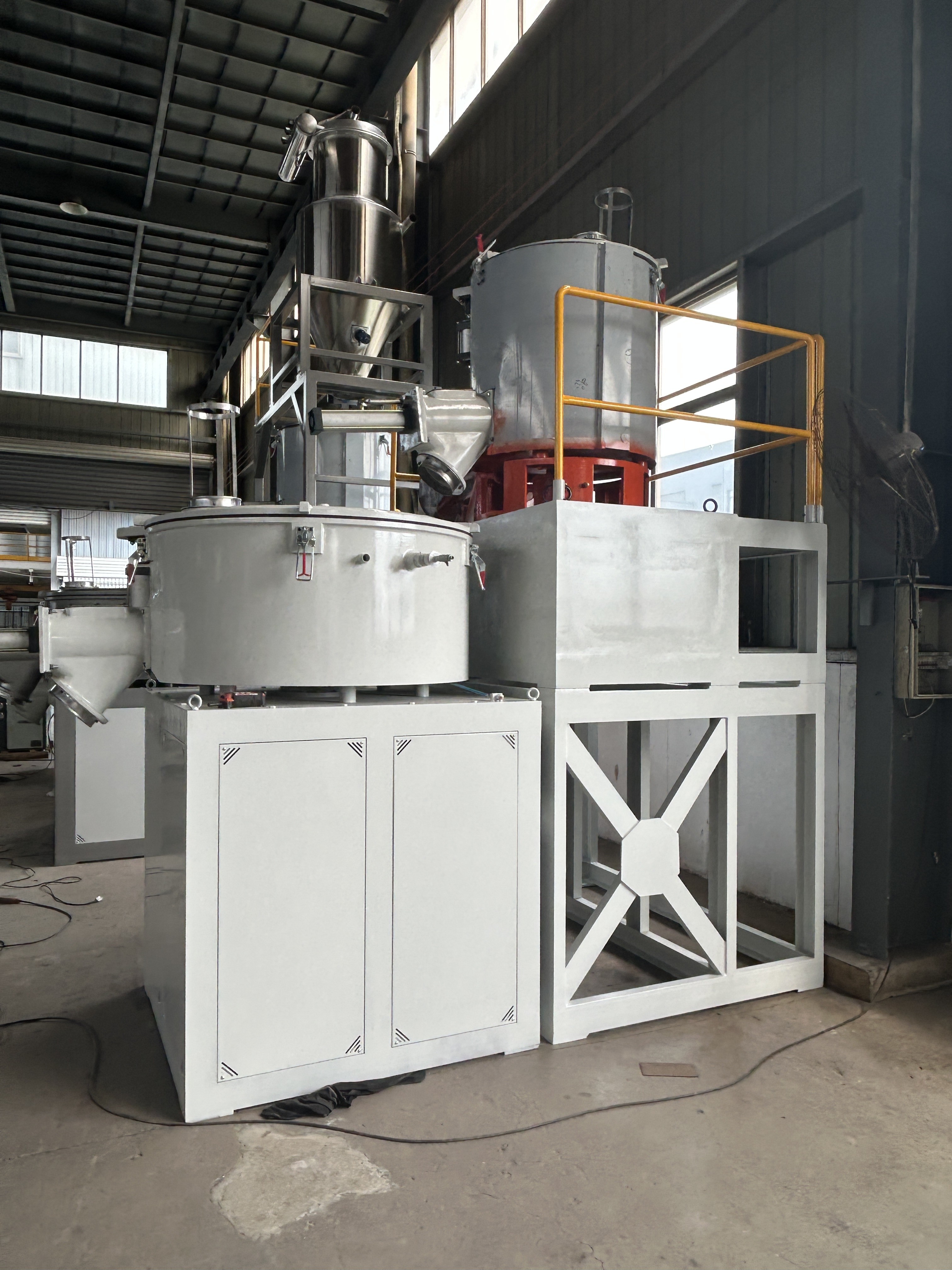

The mixer combination is used to prepare raw material, it has heating pot and cooling pot. Through the spiral loader, the raw material enters the heating pot. It will rotate and increase the inner temperature to achieve best mixture performance. When its temperature reaches the set temperature, it will enter the cooling pot. In the cooling pot, the mixture will decrease the temperature getting the stable raw meaterial mixture. For the PVC and WPC product production, the mixer combination is necessary. Only the mixture could produce best final product with uniform gloss and surface. For the 500/1000L mixer combination, it could provide mixed material for two extrusion line at the same time. Our machine has 18 months warranty and lifelong after-sales services.

Application:

• Mixer is mainly used in mixing, drying, the mixture of phenolic resin, powders etc.It is one of the necessary equipment in the industrial of plastic & rubber, pharmaceutical, dyeing etc.
• PVC plastics mixer is effective, with the high homogeneity in mixture, it`s
• quite easy for operating and cleaning, as well as the durable compact structure.
• Stainless steel paddle with scientific structure, able to mix raw material completely; minimize
• load, save time and electricity; Made of premium stainless steel, high strengthand easy to clean.
• The unit combains heat mixing and cooling mixing craft together.The materials after heat mixing can be got into cool mixer for cooling automatically,exhausts remaining gases and prevent agglomeration. The unit is developed by importing and advanced foreign technology.
• Heat mixing has such functions as self-friction ,and electric heating.cool mixer absorbed slowdown tech form overseas,adopts direct slowdown device,overcomes the deadly weakness causing by use of retarder.that makes it running smoothly even more.This machine has come up to the same kind of product level in the word.That is an ideal equipment for producting plates,pipes and special-shaped materials etc.

Machine features

• High speed mixing motor inverter started
• High speed parts 3 methods temperature increasing: material self-friction/electric heating/conduction oil heating
• Material discharge 2 methods: temperature controller automatic release/mixing time control
• The parts contact with raw material are all made of stainless steel 304 and mirror polishing treatment
• The barrel covers and three direct links made of cast aluminum
• The bearing chambers with special designs for the lubricating oil injection
• Driving motor over current protection design

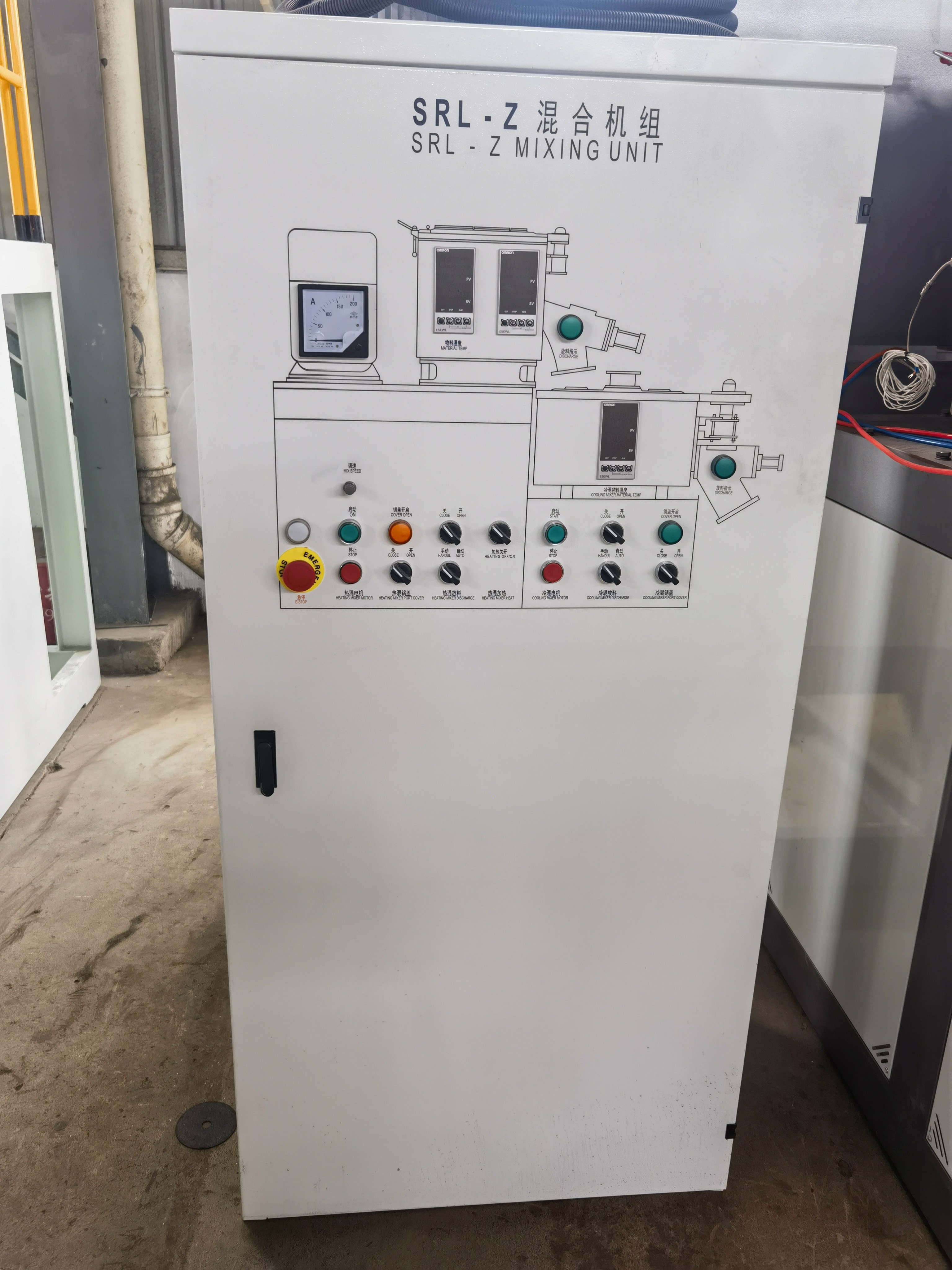

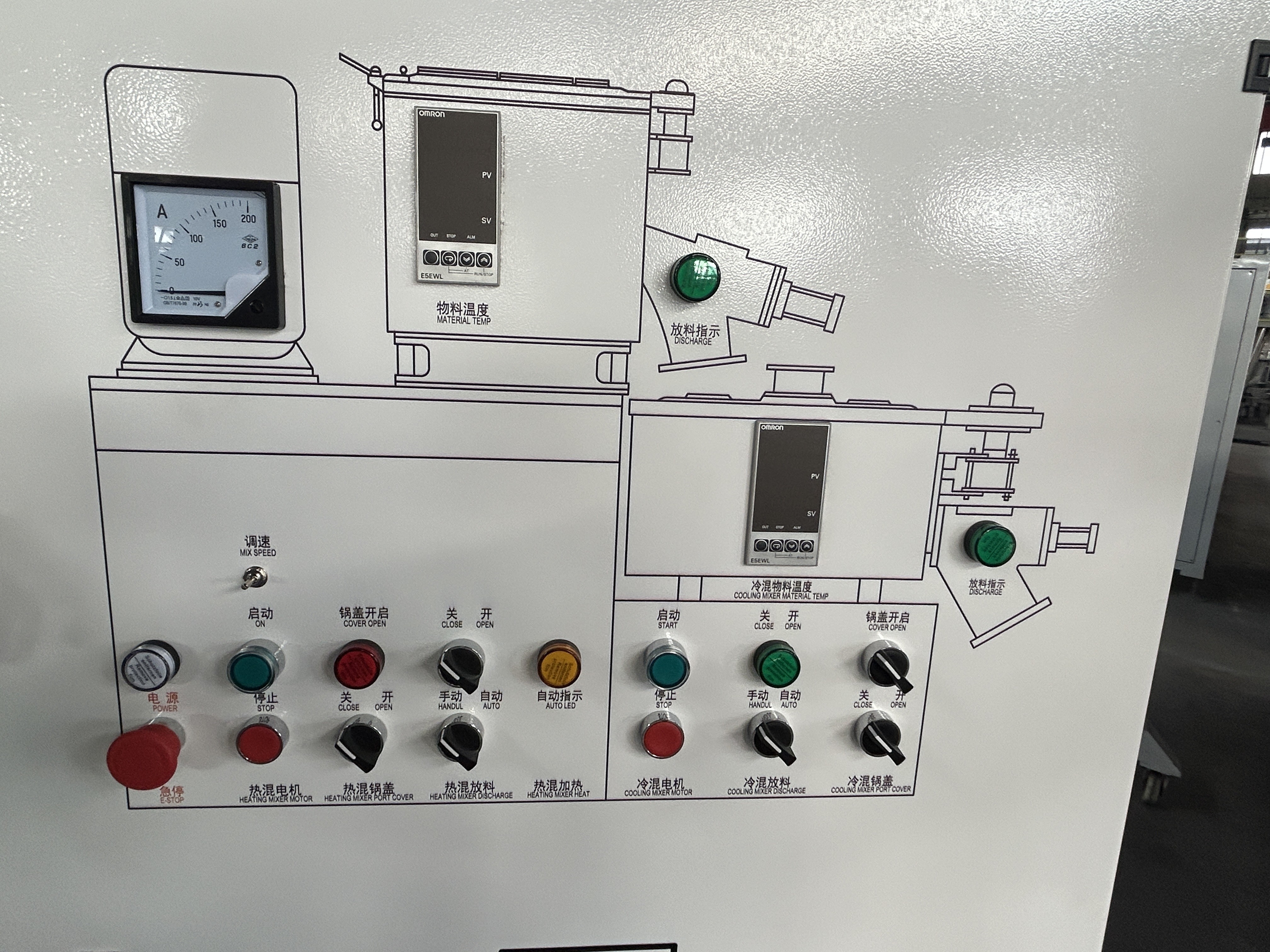

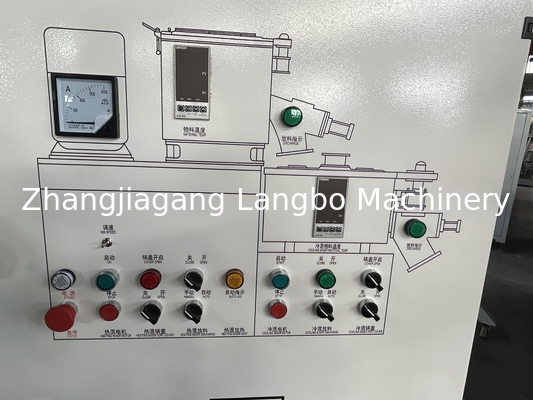

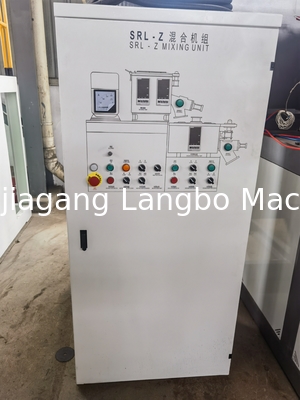

• PLC touch screen control system can be choosed for the high automatic control requirement
• Special designed mixing axis design can avoiding the raw material leaking from the barrel
• Used in all kinds of plastic mixing dry colouring process.
• The main shaft sealing device, adopts the special material seal and oil resistant high temperature resistant skeleton oil seal type
• Hot mix with self friction and electrical heating or steam heating function
• Pot with double sealing cold mix USES the arch, not changeful form
• Has a compact structure Beautiful appearance etc.
• Equipped with a dust filter unit
• The blades are through Static balance test 8. Electrical manual and PLC automatic control.
• Machine technical parameter:

All the inner side of our mixer combination is Stainless Steel SUS304. It ensures the bery solid and hard quality and lifelong working lifetime.
