Product Details:
|
| Extruder Power (kw): | 75KW | PIPE DIAMETER: | 16-63MM |
|---|---|---|---|
| COLOUR: | CUSTOMIZED | APPLICATION: | WATER SUPPLY CONDUIT |
| MARK LINE: | YES | SCREW DIAMETER: | 65/33 |
| Screw Design: | Single Screw | Certification: | CE,ISO |
| Voltage: | 380V 50HZ 3Phase(Customized) | Automatic Grade: | Full-automatic |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training | Warranty: | 12 Months |
| Color: | Customised | Control: | PLC+Touch Screen |
| Motor Power: | 75KW | Haul-off: | Four Caterpillar Haul-offs |
| Cutter: | Plenetary Cutter | ||
| Highlight: | 75kw HDPE Pipe Extrusion Line,16-63mm HDPE Pipe Extrusion Line,65/33 HDPE Pipe Extrusion Line |
||
16-63mm HDPE Pipe Extrusion Line with 65/33 extruder with 75kw motor
Advantages:
The 16-63mm HDPE pipe is widely used in the industrial, chemial or decoration industry. We adopt 65/33 75kw motor for the 16-63mm pipe extrusion line which could provide high production capacity up to 300-350kg/h. Our inverter frequency adopts ABB inverter. The motor is Siemens-beide(Siemens joint venture in China). All the electrical parts are Siemens or Schnider. The screw and barrel are top quality in China. The gearbox are Chines famous brand. All these excellent components ensure the quality of the complete line. For the machine, we provide installation, commisoning and training at customers' site. And we will provide life-long after-sale service.
Processing Process:
PE granules—material feeder—single screw extruder—mould and calibrator—vacuum forming machine—two-staged spraying cooling machine—haul-off machine—knife cutter—stacker.
Specifications
| Model | LB110 | LB250 | LB315 | LB400 |
| Pipe Range | 20-110mm | 75-250mm | 110-315mm | 180-400mm |
| Screw Model | SJ65 | SJ75 | SJ75 | SJ75 |
| Motor power | 55KW | 90KW | 132KW | 160KW |
| Output | 150kg | 220kg | 400kg | 600kg |
Product detail:

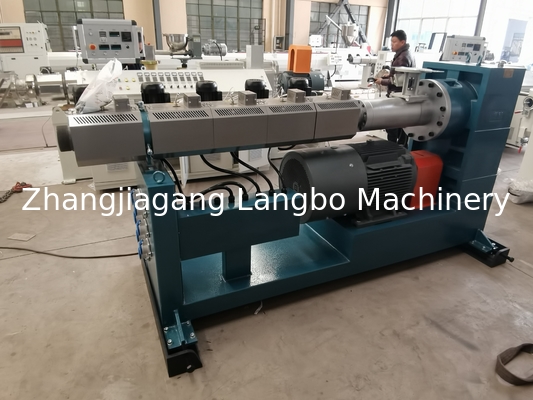

The extruder are crafted with top brand components to ensure production stability, efficiency and machine durability. Our extruder allocate international standard single screw and barrel. The screw has strong rigidity ensuring long service life and distinguished plasticizing effect.
Mould
The mould has spacious flow channel design to guarantee high extrusion capacity and good melting effect.
It is made and inspected by the experienced manufacturer. The optimized temperature control and flow channel design ensures precise melt temperature control.
Vacuum and cooling tank
The vacuum calibration tank adopts stainless 304 steel. The excellent vacuum system ensures precise sizing for pipes. The holder in first step of the vacuum calibration tank guarantees the pipe shaped and provides extra power for the pipes moving on.

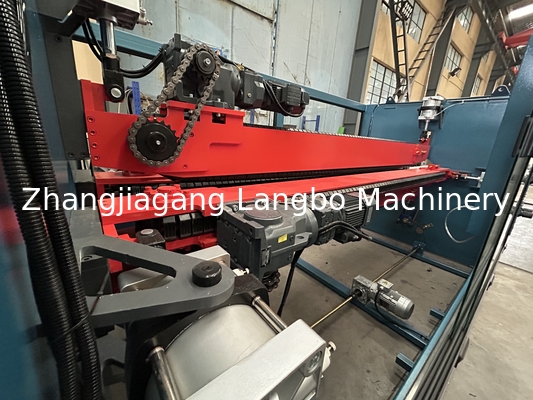

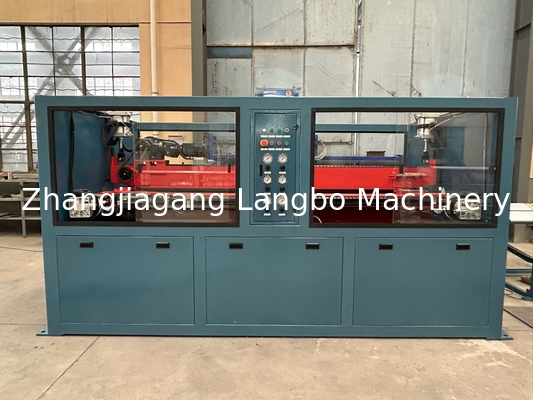

Haul-off Unit
The ten caterpillar on the haul-off machine ensures produced pipe running stably and steady. utilize a unique mechanism to prevent pipe ovality while our unique belt design assures proper pulling without slippage.
Cutting Unit
We offers two cutting methods including rapid cutter and planetary cutter. In accordance to the
produced pipe material, the cutting way can be switched randomly.
Tipping table
Our Tipping table is made by 304 quality stainless material of iron structure, sturdy structure and heavy load bearing. Our rubber wheel steady hold the pipe product without scratch risk.
